OEM Power Tailgate Kick Sensor Wiring Instructions
This guide explains how to install a hands-free kick sensor on a factory/OEM power tailgate system.

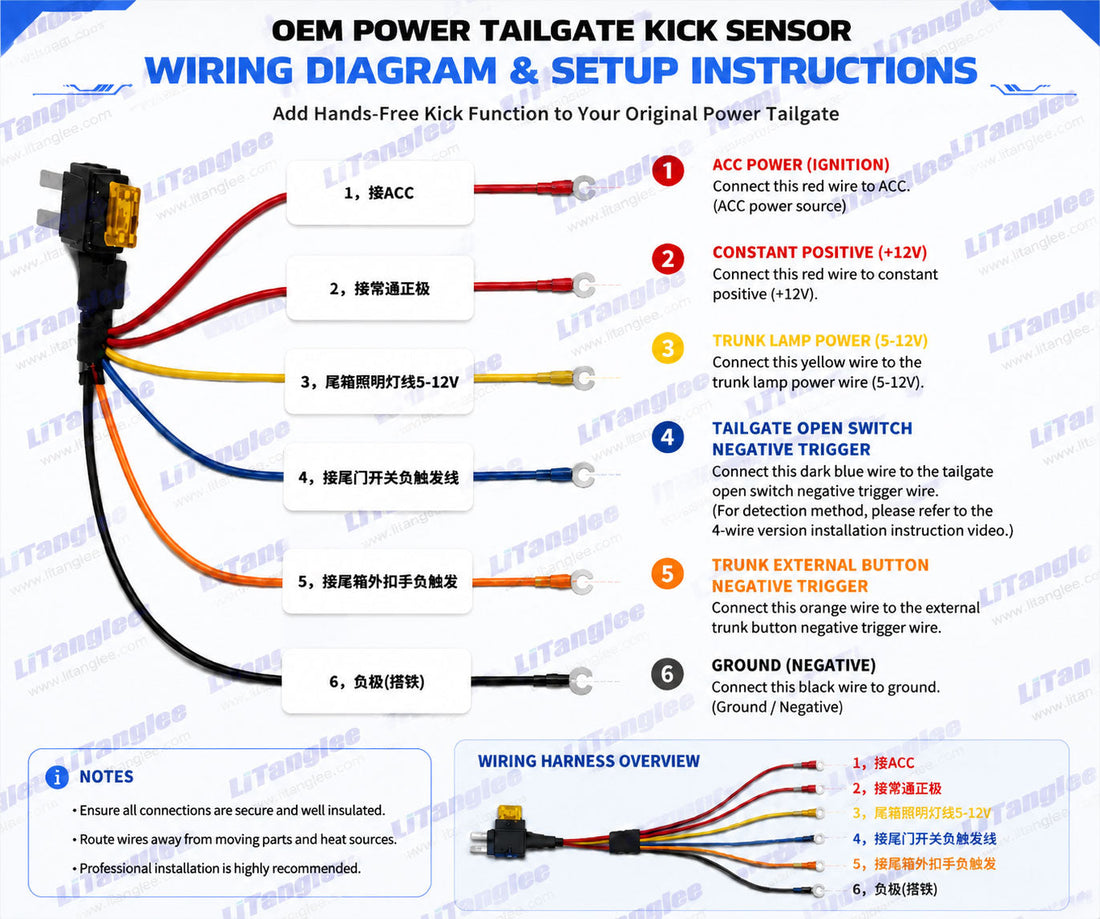

Wiring Connection Instructions
-
1. ACC Power (Ignition Power) - [接ACC]
Connect this wire to the vehicle's ACC power source. -
2. Constant Positive (+12V) - [接常通正极]
Connect this wire to the vehicle's constant positive power supply (+12V). -
3. Trunk Lamp Power (5-12V) - [尾箱照明灯线5-12V]
Connect this wire to the trunk/tailgate lamp power wire. -
4. Tailgate Close Switch Negative Trigger - [接尾门开关负触发线]
Connect this wire to the original tailgate open switch negative trigger wire.
[Click Here] Detection method video tutorial and kick sensor mounting guide. If you need further assistance, click here. -
5. Trunk External Button Negative Trigger - [接尾箱外扣手负触发]
Connect this wire to the external trunk button negative trigger wire. -
6. Ground (Negative) - [负极(搭铁)]
Connect this wire to the vehicle ground point.
Sensor Installation Notes & Placement Guide
Correct sensor installation is important for reliable hands-free tailgate operation. Please follow the installation requirements below.
-
1. Sensor Direction
The side marked "SENSOR" must face upward toward the sky after installation. Incorrect installation direction may reduce detection sensitivity.
-
2. Installation Position
The sensor must be installed inside the rear bumper area. Place the sensor in a position where it can detect foot movement below the bumper.
-
3. Avoid Metal Obstructions
Do not install the sensor directly on metal parts or behind metal structures. Metal interference may affect sensing performance. -
4. Keep Detection Area Clear
Do not cover the sensor detection area with thick pads, brackets, or other materials. Make sure the sensing side remains unobstructed.
Important Installation Reminder
Please test the kick function before permanently fixing the sensor. The sensor orientation and installation location directly affect detection performance.
